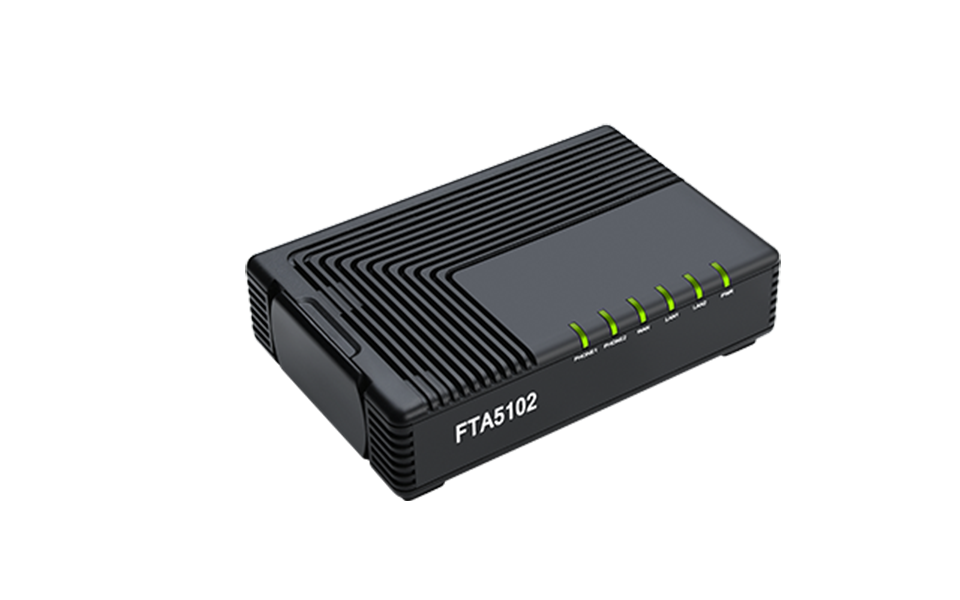

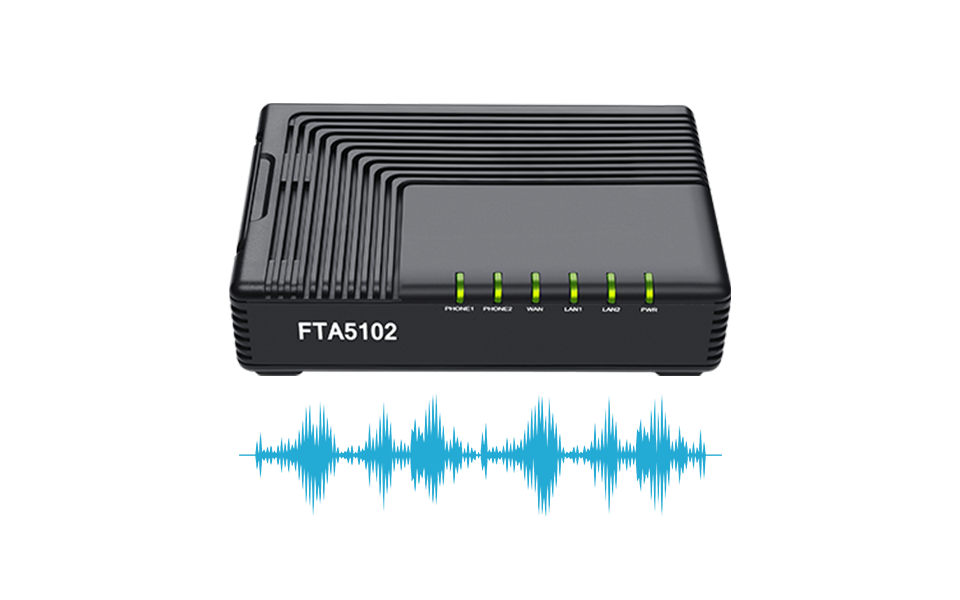

FV-FTA5102 – VoIP Adapter – 1 WAN and 2 LAN 100 BASE-T

38,00 + IVA

Descrizione

ATA VoIP Adapter – FTA5102

1 WAN and 2 LAN 100 BASE-T

High-Efficiency ATA with 2 FXS Ports

Advanced Acoustic Performance





High Compatibility, High Reliablity





Mounting Flexibility with a User-friendly Base



Product Features



VoIP SoC Audio Code
• CPU: RT5350 • G.711 (A/u), PAMS>4.3

• G.729A/AB, PAMS>4.0

• T.30 FAX with G.711

• Real time FAX over IP via T.38 (Phone 2 port only)

• Adaptive Jitter Buffer

• Voice Activity Detection

• Comfort Noise Generation

• Echo Cancellation

RAM
• 32MB SD RAM
Flash
• 16MB Flash
Operating System
• Linux 2.6.21
Power Size and Weight
• AC/DC Adapter

AC Input: 100~240V, 50~60Hz

DC Output: 12V, 1A

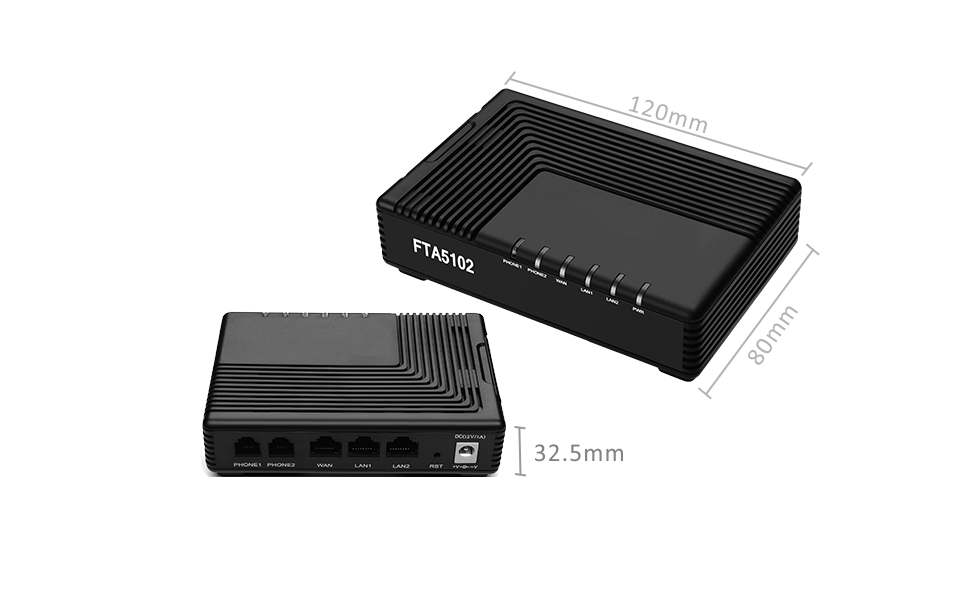

• 120mm (L) x 80mm (W) x 32.5mm (H)

• 119g (N.W)

Environmental I/O Interfaces
• Operation Temperature: 0~50 Degree C

• Storage Temperature: -25~85 Degree C

• Relative Humidity: 10%~90% No Condensing

• 1 RJ-45 for WAN port (Ethernet 100 Base-T)

• 2 RJ-45 for LAN port (Ethernet 100 Base-T)

• 2 RJ-11 for FXS port

Applications Management
• NAT/NAPT Router function

• MAC Address Cloning

• DHCP Server

• PPTP/L2TP VPN

• PPPoE

• SIP proxy redundancy

Dynamic via DNS SRV, A records

• NAT Traversal by STUN

• DMZ

• QoS with Layer 3

• DHCP Client and DHCP Server

• IP conflict detection



• Firmware Upgradeable

• Web Management Interface

• IVR-driven Management Interface

• Local and Remote Syslog (RFC3164)

• Auto Provisioning

• SNTP Time Synchronization

• Multi User Level

• SNMPv2

• TR069

• Support Flying FCMS Cloud Management

Protocols Call Features
• SIP V2 (RFC 3261,3262,3263,3264)

• Backward Compatible with RFC2543

• Session Timer (RFC4028)

• SDP (RFC2327)

• RTP/RTCP (RFC1889 and RFC1890)

• NAPTR for SIP URI Lookup (RFC2915)

• STUN (RFC 3489)

• ARP/RARP (RFC 826/903)

• SNTP (RFC 2030)

• DHCP/PPPoE

• PPTP/L2TP VPN

• HTTP Server for Web Management

• TFTP/HTTP/HTTPS for Auto Provisioning

• DNS/DNS SRV (RFC1706 and RFC 2782)



• 3-way conference

• Music on hold

• Call hold

• Call forwarding

• Call Mute

• Call Transfer

• Call waiting

• Caller ID and CWCID

• DTMF mode: In-band, RFC2833 and SIP INFO

• Speed Dial

• Hotline

• Real time fax over IP via T.38

• T.30 FAX with G.711

• Dial Plan

• Black List

• Call Log





Model Comparison

FTA1101 FTA5102 G504
FXS (RJ11) 1 2 4
SIP Account 1 2 4
Ethernet (RJ45) 2*10/100M Ethernet 3*10/100M Ethernet 2*10/100/1000M Ethernet
WiFi × ×
2.4GHz Speed 300 Mbps × ×
USB 1 × ×
AP Mode × ×
HNAT × ×
