In offerta!

FV-FTA1101 – Portable Wireless VoIP Adapter – 1 WAN and 1 LAN 100 BASE-T, 802.11 b/g/n 2T2R ATA, 1 FXS, 1 USB

38,00 28,50 + IVA

Descrizione

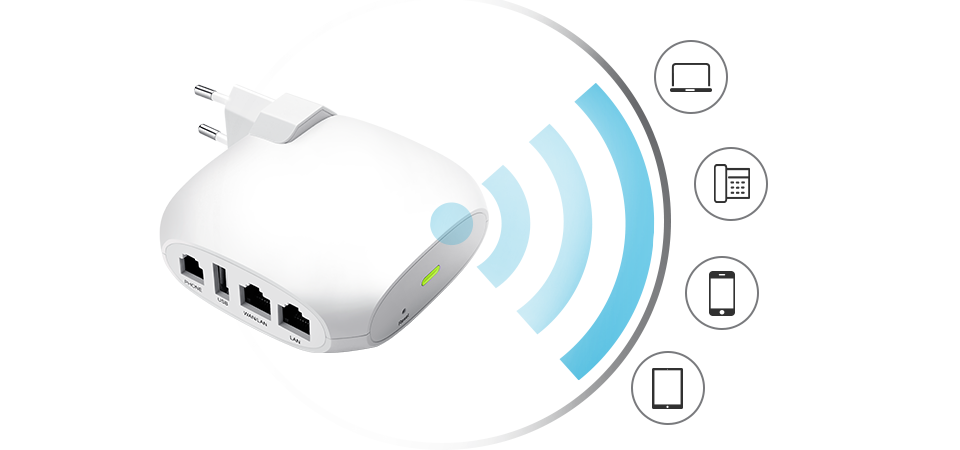

Portable Wireless VoIP Adapter – FTA1101

1 WAN and 1 LAN 100 BASE-T, 802.11 b/g/n 2T2R ATA, 1 FXS, 1 USB

Built-in AP Mode, 2.4GHz Unlicensed Band





PESQ 4.4, Advanced Acoustic Performance





Product Features



VoIP SoC Audio Code
• CPU: MT7628 MIPS 580MHz • G.711(A/u), PAMS>4.3

• G.729A/AB, PAMS>4.0

• T.30 FAX with G.711

• Real time FAX over IP via T.38 (Phone 2 port only)

• Adaptive Jitter Buffer

• Voice Activity Detection

• Comfort Noise Generation

• Echo Cancellation

RAM
• 64MB SD RAM
Flash
• 16MB Flash
Operating System
• Linux 2.6.21
Power Size and Weight
• AC/DC Adapter

AC Input: 100~240V, 50~60Hz

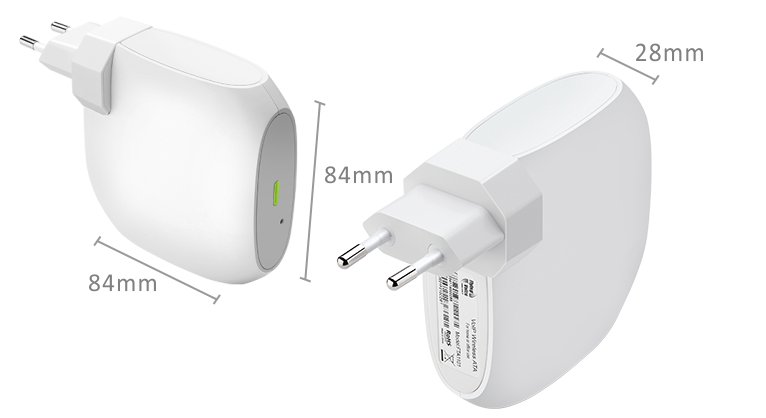

• 85mm (L) x 85mm (W) x 28mm (H)

• 366g (N.W)

Environmental I/O Interfaces
• Operation Temperature: 0~50 Degree C

• Storage Temperature: -25~85 Degree C

• Relative Humidity: 10%~90% No Condensing

• 1 RJ-45 for WAN port (Ethernet 100 Base-T)

• 1 RJ-45 for LAN port (Ethernet 100 Base-T)

• 1 RJ-11 for FXS port

• 1 USB

• IEEE802.11 b/g/n



Wireless Management
• Firmware Upgradeable• Web Management Interface

• IVR-driven Management Interface

• Local and Remote Syslog (RFC3164)

• Auto Provisioning

• SNTP Time Synchronization

• Multi User Level

• SNMPv2

• TR069

• Support Flying FCMS Cloud Management



• Firmware Upgradeable

• Web Management Interface

• IVR-driven Management Interface

• Local and Remote Syslog (RFC3164)

• Auto Provisioning

• SNTP Time Synchronization

• Multi User Level

• SNMPv2

• TR069

• Support Flying FCMS Cloud Management

Protocols Call Features
• SIP V2 (RFC 3261,3262,3263,3264)

• RTP/RTCP (RFC 1889 And RFC 1890)

• NAPTR For SIP URI Lookup (RFC 2915)

• STUN (RFC 3489)

• SDP (RFC 2327)

• ARP/RARP (RFC 826/903)

• SNTP (RFC 2030)

• TFTP/HTTP/HTTPS for Auto Provisioning

• NS/DNS SRV (RFC 1706 And RFC 2782)

• IEEE802.1Q VLAN/802.1p/DSCP

• TR069 (TR104/TR098/TR111)



• 3-way conference

• Call hold

• Call forwarding

• Call transfer

• Call waiting

• Caller ID and CWCID

• DTMF mode: In-band, RFC2833 and SIP INFO

• QoS Layer 3

• Call Log

• CID/CWCID

• Dial Plan

• DTMF Mode: Inband, outband and SIP Info

Applications
• Support NAT mode and Bridge mode

• Support DDNS

• MAC address cloning

• SIP proxy redundancy

• NAT Traversal by STUN

• Built-in Wired speed NAT Router

• DHCP Server and Client





• IP conflict detection

• Port Forwarding, DMZ, SuperDMZ

• 802.1Q VLAN/802.1p, DSCP, Rate Limiting

• VPN (PPTP,L2TP, IPSec) Passthrough

• SNTP

• IGMPv2

• Firewall(SYN Flooding, IP Spoofing, Smurf Attack, Ping of Death, DoS)

Model Comparison

FTA1101 FTA5102 G504
FXS (RJ11) 1 2 4
SIP Account 1 2 4
Ethernet (RJ45) 2*10/100M Ethernet 3*10/100M Ethernet 2*10/100/1000M Ethernet
WiFi × ×
2.4GHz Speed 300 Mbps × ×
USB 1 × ×
AP Mode × ×
HNAT × ×
